  1. Industrial 3G and 4G Routers
  2. Serial to IP modem
  3. Industrial Cellular Modem


  • Industrial Cellular Routers for 4G / 3G mobile networks, high performance and industrial casing design, ideal for various of IoT and M2M application.



  • Robust Serial to IP modem (also named DTU) equipped with PPP, TCP/IP and DDP protocol, converts the serial data (RS232/485/422) into IP data and then transfers this to a data center through the GPRS / 3G / 4G network.



  • Industrial Cellular Modems with RS232/RS-485/USB 2.0 interface. The modem provides SMS and dial-up function using 3G / 4G Cellular networks.

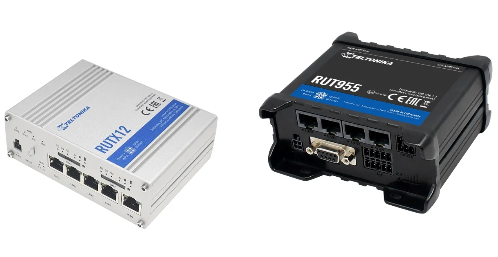

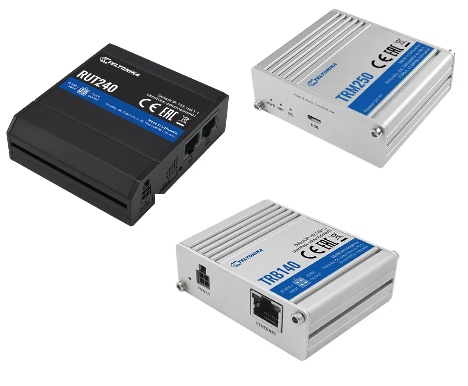

Industrial 3G and 4G Routers

Industrial 3G and 4G Routers and Modems

  • Industrial robust design and compact metal housing
  • High data speed via 4G or 3G network
  • DIN Rail Mount for Industrial (specific models)
  • Ultra security, VPN: PPTP, L2TP, GPE, IPsec VPN & Open VPN
  • GPS tracking optional
  • Redundant Dual SIM, 4G MIMO
  • MIMO provides better performance and stability
  • Advanced dynamic routing, security and firewall features




G500 Gigabit 4G/3G Powerful Router

Wlink G500 4G / 3G Router is the rugged and powerful Gigabit router, built-in ARM Cortex A8 Dual Cor 800MHz

  • Industrial robust, heavy-duty metal enclosure and connectors
  • High data speed via 4G or 3G network
  • ARM Cortex A9 Dual Core, 800MHz CPU
  • Simultaneous Dual-Band 802.11n&ac Wi-Fi
  • Redundant Dual SIM, 4G MIMO
  • Ultra security, VPN: PPTP, L2TP, GPE, IPsec VPN & Open VPN(Option)
  • GPS Optional
  • Wifi
  • Expansible Storage Optional
  • Centralized manageable



         G500 User Manual




R210 4G/3G Router with I/O

WLINK R210 Series is the Intelligent 4G / 3G router designed for critical infrastructure, M2M, Iot and industrial app

  • Industrial robust design, heat endurance and radiation ability
  • High data speed via 4G or 3G network
  • Ultra security, VPN: PPTP, L2TP, GPE, IPsec VPN & Open VPN(Option)
  • DIN Rail Mount for Industrial
  • Redundant Dual SIM, 4G MIMO
  • GPS Optional
  • WiFi
  • Expansible Storage Optional
  • Centralized manageable



  R210 User Manual






R520 4G/3G Router 5xLAN

WLINK R520 is the typical 4G / 3G cellular router that allows you to access and share high-speed mobile internet

  • Industrial robust design and compact metal housing
  • High data speed via 4G or 3G network
  • MIMO provides better performance and stability
  • WAN port support PPPoE, static IP, DHCP client
  • Dual SIM redundant option
  • GPS tracking optional
  • Ultra security, VPN: PPTP, L2TP, GPE, IPsec VPN & Open VPN(Option)
  • Centralized manageable
  • 5x LAN,1x RS-232



         R520 User Manual






R200 4G/3G Router 2xLAN

Wlink R200 is the industrial grade, secure and reliable 4G/3G router, it designs for professional applications

  • Industrial, secure and high reliable
  • High data speed via 4G or 3G network
  • Ultra security, VPN: PPTP, L2TP, GPE, IPsec VPN & Open VPN(Option)
  • Advanced dynamic routing, security and firewall features
  • GPS tracking optional
  • Centralized manageable
  • WiFi Option
  • 2x LAN



         R200 User Manual






R100 4G/3G Router 1xLAN

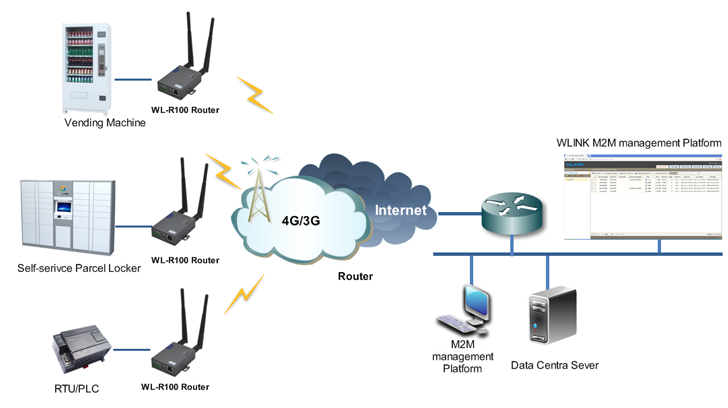

Wlink R100 series is the mobile broadband router, small, compact and hardened mechanical design

  • Industrial, compact, flexible and low cost
  • High data speed via 4G or 3G network
  • Strong electromagnetic interference Resistance
  • Support Serial to IP data transfer
  • Ultra security, VPN: PPTP, L2TP, GPE, IPsec VPN & Open VPN(Option)
  • Low Cost
  • Centralized manageable
  • 1x LAN,1x RS-232



         R100 User Manual






R220 OpenWrt 4G/3G Router

Wlink R220 is the 4G / 3G router with OpenWrt OS, OpenWrt provides minimal firmware with support for add-on

  • Industrial rugged and compact metal housing
  • High data speed via 4G or 3G mobile network
  • OpenWrt OS for add-on package
  • Atheros AR9344, 533MHz CPU
  • Shock and vibration resistant
  • 2xLAN, 1x WAN, 1x RS-232



         R220 Quick Start Guide

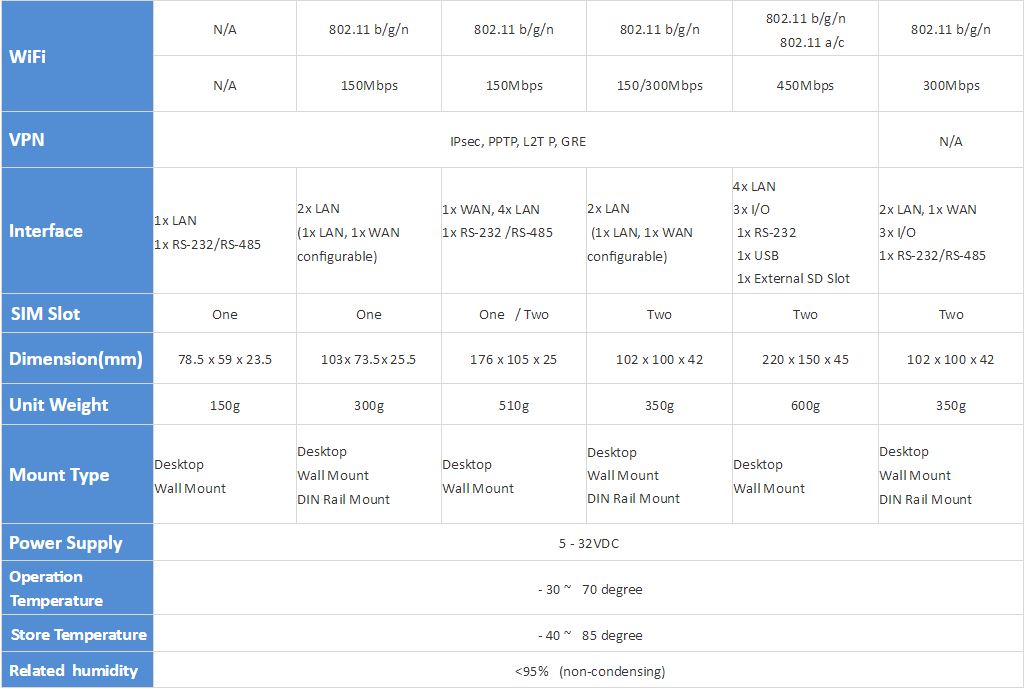

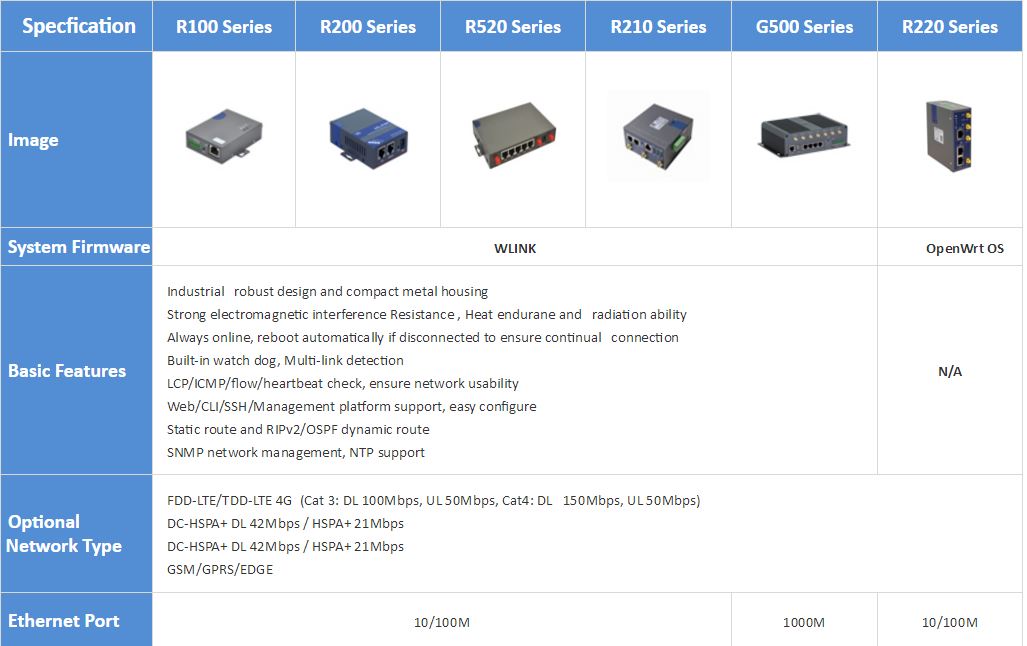

Router Comparision


Product sheets and additional files

view all files »

Router SMS ConfigurationRouter SMS Configuration

R100 Router User ManualR100 Router User Manual

R200 Router User ManualR200 Router User Manual

R210 Router User ManualR210 Router User Manual

R520 Router User ManualR520 Router User Manual

G500 Series Router DatasheetG500 Series Router Datasheet

R220 Open Wrt Quick Start GuideR220 Open Wrt Quick Start Guide



Serial to IP modem

  • Data transfer from serial port to IP
  • GPRS,EDGE, HSDPA & LTE
  • Single or two RS-232/485/422 version optional
  • TCP/UDP Protocal
  • Auto Dial-up

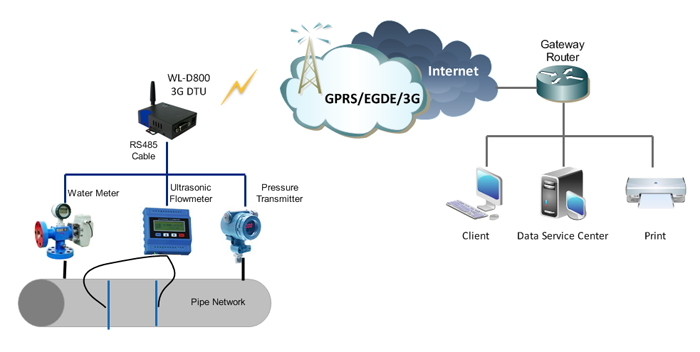

  • Application:  SCADA, PLC, RTU oil field, coal mine, weather forecast, environment protection and AMR etc

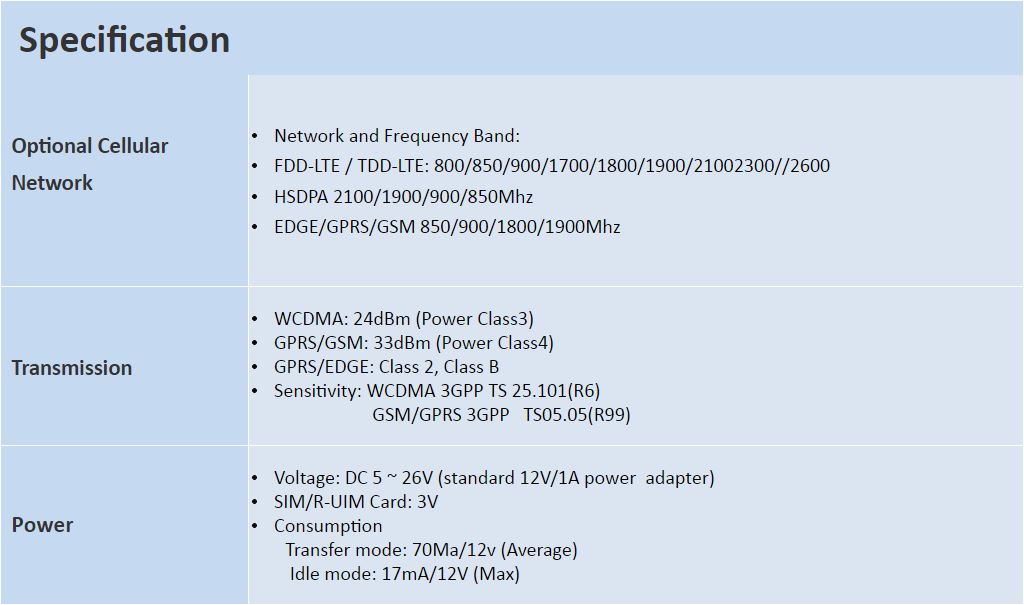

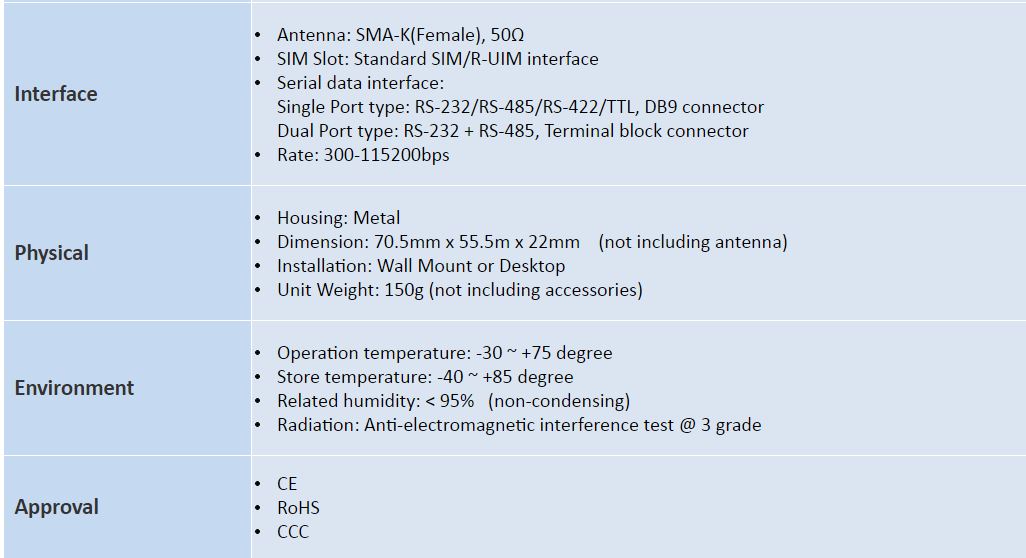

The robust D80 series Serial to IP modem (also named DTU) is equipped with PPP, TCP/IP and DDP protocol, it converts the serial data (RS232/485/422) into IP data and then transfer to a data center through GPRS / 3G / 4G network.

The rugged D80 series serial to IP 3G modem  (called DTU as well) is a cellular modem have been developed especially for M2M application. It provides RS232/RS-485/RS-422/TTL interface and equipped with PPP, TCP/IP and DDP protocol, it could convert the user data into HSPA+/HSDPA 3G network and transmits the data to the customer’s data service center through complete transparent data channel, allows a simple and rapid integration of cellular network connectivity into M2M application.
With the robust, reliable, long life and compact metal case design, the D80 DTU ideally adapts to onboard standard, easy to
deploy and maintenance, it has been widely applied in many fields worldwide, such as power SCADA, oil field, coal mine, weather forecast, environment protection, water conservancy, heating, natural gas, petroleum and so on.

.

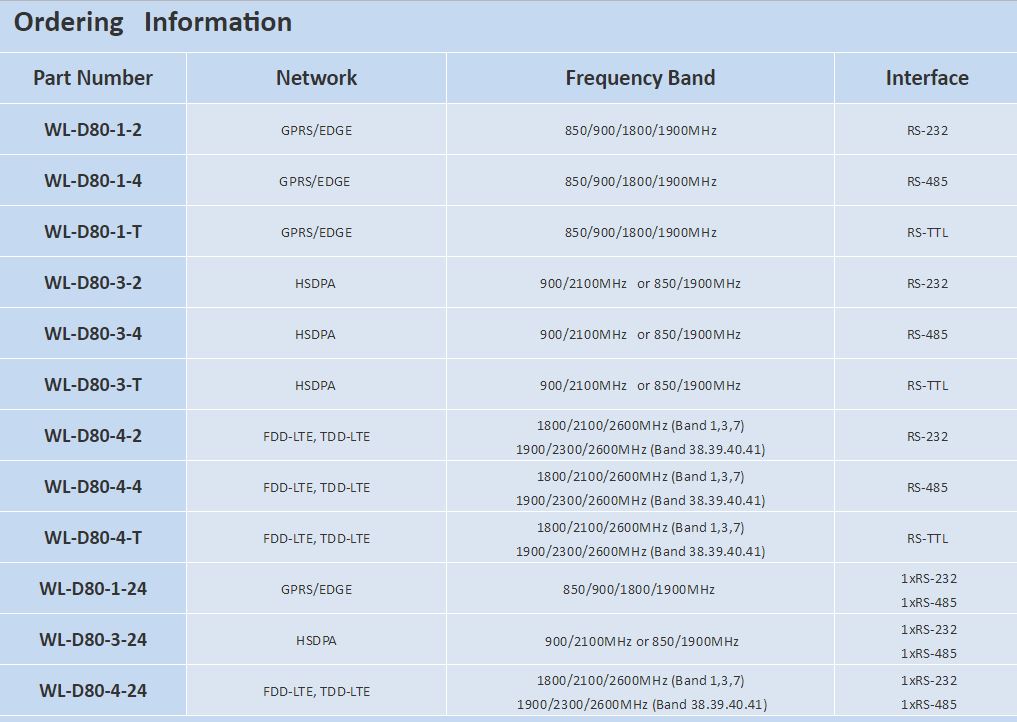

Serial to IP GPRS Modem - D801




Serial to IP 3G Modem - D803








Serial to IP 4G Modem - D804










Industrial Cellular Modem

  • Industrial Class Design

  • 4G/3G/2G Network Options

  • Support standard RS232/RS485 interface

  • AT Command Supported

  • Flexibility and Convenience

  • Stability and Reliability



Wink industrial cellular Modem with RS232/RS-485/USB 2.0 interface is the modem that provides SMS and dial-up function by 3G / 4G Cellular network cater for industrial application requirement.




Serial Cellular Modem

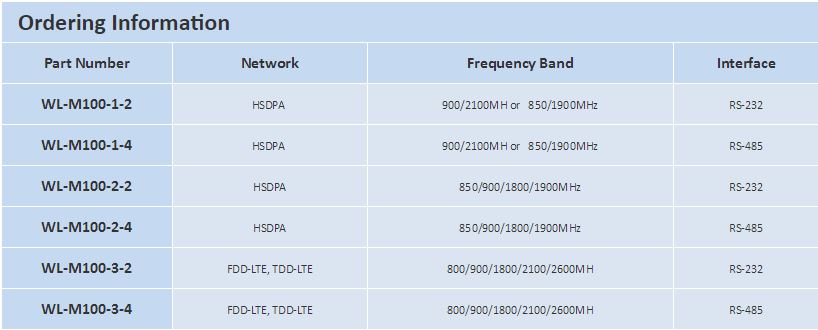

Wlink M100 family industrial 3G cellular Modem with RS232/RS-485 interface is the model that provides SMS and dial-up function by 3G/4G Cellular network cater for industrial application requirement.
Due to the performance industrial module, robust metal case and a wide operating temperature range, this model is well suitable for industrial application. The configuration and controlling can be made using AT-commands.

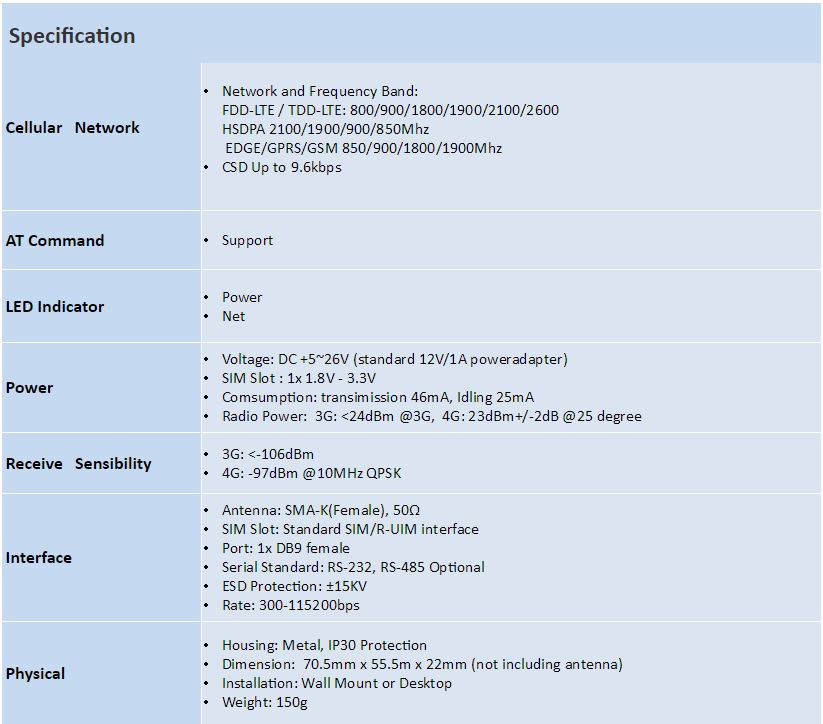

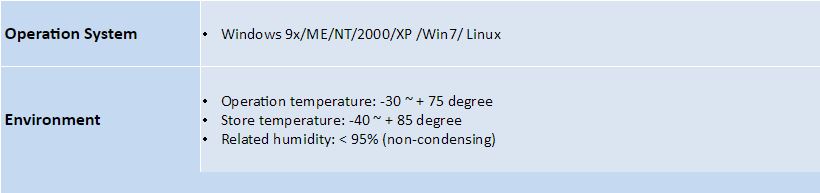

  M100 Serial Modem Datasheet



Industrial Class Design

  • High-powered Industrial cellular module provide the strong anti-jamming ability

  • PCB comply to 3H and 3W

  • Wide range Voltage power supply



Flexibility and Convenience

  • Support standard RS232/RS485 interface that can plug into industrial PC or end RS232 /RS485 device

  • Plug & Play solution for quick and easy integration , flexible and reliable

  • Control the power on/off by interface control line, easy for user device to control the operation of the modem



Stability and Reliability

  • The modem support serial I/O hardware reset to ensure always online

  • Link detection and watch-dog design, support WDT to ensure always online transmission

  • UIM/SIM SIM card ESD Protection: 1.8V/3V Standard

  • RS232 Interface ESD protection

  • Robust Metal Case and anti-lightning protection

  • Provide IP30 protection










 USB Cellular Modem

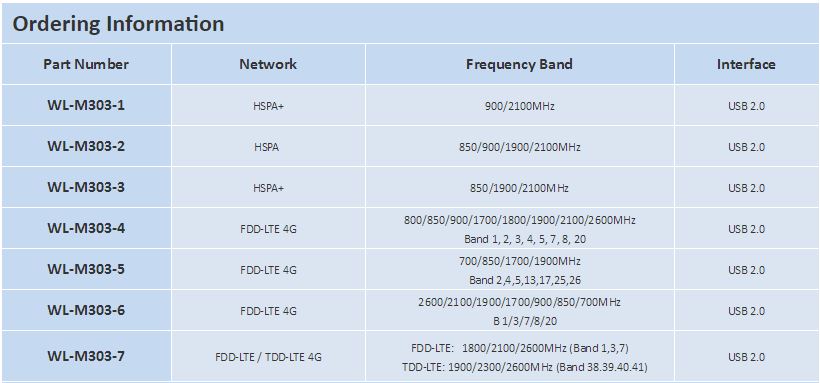

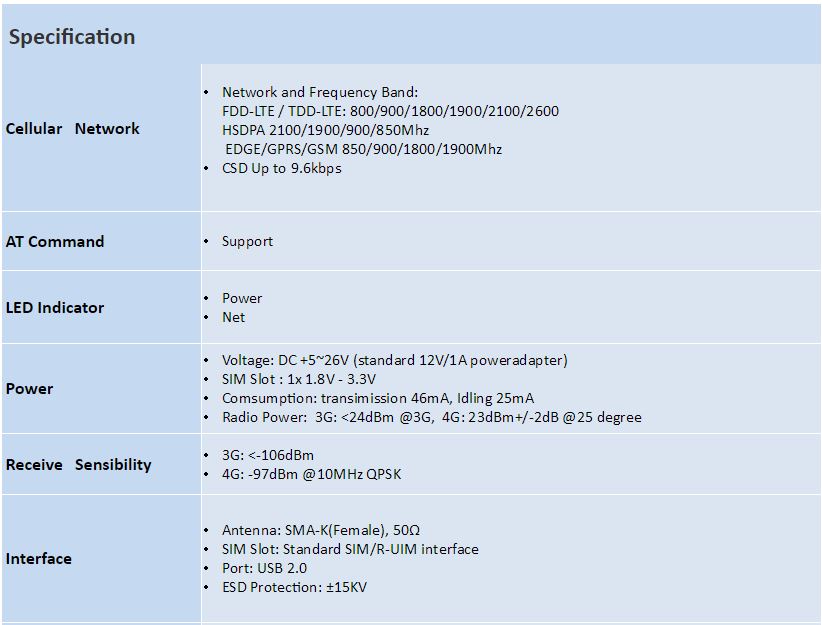

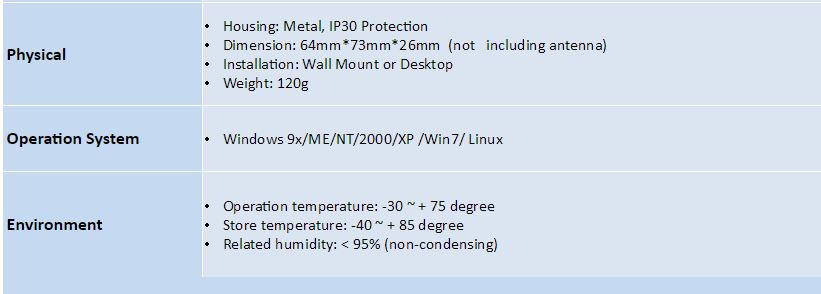

Wlink M303 family industrial 3G cellular Modem with USB 2.0 interface is the model that provides SMS and dial-up function by 3G/4G Cellular network cater for industrial application requirement.
The modem which supports up to 100Mbps downlink speed and 50Mbps uplink speed service can utilize the 4G/3G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in packet data. Due to the performance industrial module, robust metal case and a wide operating temperature range, this model is well suitable for industrial application.



  M100 Serial Modem Datasheet



Industrial Class Design

  • High-powered Industrial cellular module provide the strong anti-jamming ability

  • PCB comply to 3H and 3W

  • Wide range Voltage power supply



Flexibility and Convenience

  • Support standard USB 2.0 interface that can plug into industrial PC or end USB device

  • Plug & Play solution for quick and easy integration , flexible and reliable

  • Control the power on/off by interface control line, easy for user device to control the operation of the modem



Stability and Reliability

  • The modem support serial I/O hardware reset to ensure always online

  • Link detection and watch-dog design, support WDT to ensure always online transmission

  • UIM/SIM SIM card ESD Protection: 1.8V/3V Standard

  • USB 2.0 Interface ESD protection

  • Robust Metal Case and anti-lightning protection

  • Provide IP30 protection
